Ether10.DuaLoop


smart double port reflector

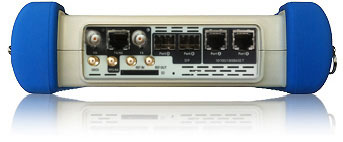

Ether10.DuaLoop front

Ether10.DuaLoop Network

Ether10.DuaLoop platform

Ether10.DuaLoop

Ether10.DuaLoop is a 10Gbit/s loop-back device with two optical/electrical ports that can be work independently looping back Ethernet/IP L1-L4 packets that are being used to execute acceptance and assurance tests such as RFC2544 or eSAM. The optical interfaces are based on SFP+

Double port & touch-screen

This outstanding reflector is able to send back bit streams, frames and packets. It is also is very flexible and powerful because it has been equipped with two ports that can be connected electrically and optically by means of RJ-45 and SFP interfaces. Moreover, both ports can be set up and operate simultaneously with two different remote test sets.

Every Pattern, Ethernet frame or IP packet received is inspected and --once counters, statistics and LEDs are activated-- then addresses are swapped to be returned to its original source. The unit is rugged but lightweight (1kg) in order to operate everywhere (including outdoors) with ALBEDO Ethernet and other vendors testers.

Features and Benefits

  • Two RJ-45 Port supporting: 10BASE-T, 100BASE-TX and 1000BASE-T
  • Two SFP+ Port supporting:SFP / SFP+ ports: 10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBA SE-SW, 10GBASE-LW, 10GBASE-EW, 1000BASE-T, 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX, 1000BASE-BX, 100BASE-FX, 100BASE-TX, 10BASE-T
  • Touchscreen
  • Battery operated
  • Rubber Boot
  • L1/L2/L3/L4 loopback
  • Q-in-Q VLAN support
  • MPLS support
  • Scan MAC/IP/VLAN/QinQ
  • Advanced Counts: Up to 8 filters at MAC, IP, TCP/UDP
  • LEDs all events at a glance

Applications

  • QoS and SLA certification
  • Loopback function for remote BER, RFC-2544, Y.1464 tests

Users

  • Installers and Operators
  • Triple Play service providers
  • R&D, Universities, Labs
  • Commission / Maintenance


Ordering Information

CODE DESCRIPTION
AT.E10DL.HH Ether10.Dualoop 10 Gb/s Ethernet / IP Traffic Reflector. Battery operated, touchscreen. Smart Gigabit Ethernet L1-L4 loopback function. Dual 10/100/1000 Mb/s RJ-45 electrical ports, dual 10G/1000/100 Mb/s optical ports (SFP+), traffic analysis, error statistics and filters. Includes AC/DC adapter, transportation bag and one RJ-45 patch cable. SFP+ transceivers not included.
AT.E10DL.IPV6 Ipv6 statistics. Decoding and analysis of Ipv6 datagrams. Ipv6 traffic statistics. Ipv6 packet filtering. Top Ipv6 source and destination addresses (with Network Search option)
AT.E10DLP.NS Network Search. Automatic detection of up to 16 most frequent streans listed by IPV4, VLAN and MAC
AT.VNC.RC Graphical Remote Control. Based on VNC for Windows and Linux. Ethernet/IP remote control that duplicates the tester graphical user interface in a remote computer.
AT.SNMP.RC SNMP Remote Control and Automation. Based on SNMP protocol allows user to control the tester remotelly using SNMP queries.
AT.Wi-Fi.RC Wi.Fi USB. Remote Control wireless interface to be used together with VNC.
[REQUIRES: AT.VNC.RC]
AT.10GS.SFP SFP Adapter 10 Gb/s, 850 nm, MMF, 300 m reach, w/ DDM, Duplex LC, 0 - 70C
AT.10GL.SFP SFP Adapter 10 Gb/s, 1310 nm, SMF, 2 km reach, w/ DDM, Duplex LC, 0 - 70C
AT.10GZ.SFP SFP Adapter 10 Gb/s, 1550 nm, SMF, 40 km reach, w/ DDM, Duplex LC, 0 - 70C
AT.1000Sx.SFP Short haul SFP adapter. 1.25 Gb/s SFP, 850 nm, MMF, 500 m reach, with DDM, Duplex LC, 0 – 70ºC.
AT.1000Lx.SFP Long haul SFP adapter. 1.25 Gb/s SFP, 1310 nm, SMF, 20 km reach, with DDM, Duplex LC, 0 – 70ºC.
AT.1000Zx.SFP Very long haul SFP adapter. 1.25 Gb/s SFP, 1550 nm, SMF, 80 km reach, with DDM, Duplex LC, 0 – 70ºC.
AT.100Fx.SFP Optical 100 Mb/s SFP adapter. 125 Mb/s SFP, 1310 nm, MMF, 2Km reach, with DDM, SGMII, Duplex LC,  0 – 70ºC.
AT.20 Car charger. Power adapter to charge the test unit from car battery.
AT.Lipo.Batt Additional Lipo battery.
