ALBEDO Telecom - Newsletter
Year 2 - Vol 3

ALBEDO telecom

Net.Storm

Net.Storm: compact WAN emulator/br>

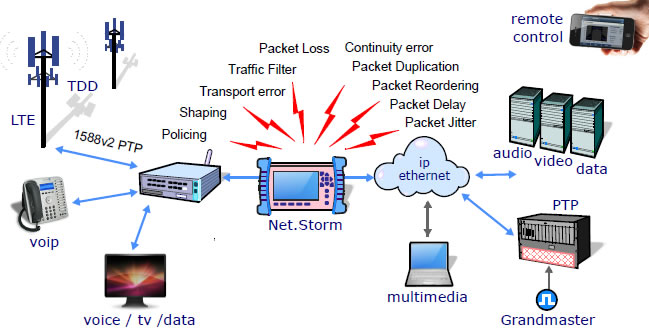

This device emulates ANY link/network based on VLAN, VPN, MPLS, etc. in terms of bandwidth & traffic impairments. Bandwidth control is done by means of Traffic Shaping & Policing specified in fr/s or bit/s, while impairments (delay, loss, jitter...), are inserted in a 100% controlled way choosing packets part of MAC/IP/TCP/UDP flows defined by the user.


Operation

Now it is possible !)

Yes, modelling arbitrary network dynamics to verify any IP based solution, is now possible.

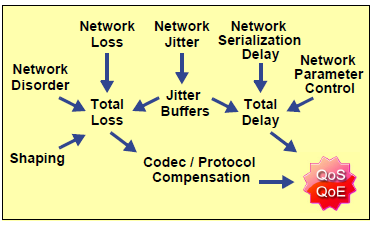

Net.Storm is able to simulate any network condition to check how tolerant your services, protocols and devices are when quality / capacity degradations occur. It replicates accurately combined effects such as packet delay, errors, loss, bandwidth variations, traffic shaping and traffic policing.


Case studies

  • TELCO: 'what may occur when then IEEE 1588v2 packet synchro is affected by random jitter?'
  • ELECTRIC POWER: 'please delay from 1ms to 150ms this telecontrol signal and observe results'
  • PROTOCOL: 'are you sure that the protocol data session will be up with a 50Mbit/s link?'
  • IPTV QoS: 'can you verify the video-conference system if the MPLS link goes down to 25Mbit/s?'
  • SLA: 'let's go to simulate these SLA conditions before the customer begins to complain'
  • VoIP: 'please emulate immediately a 14.5 Mbit/s link with 10e-3 bit error rate to check how our corporate VoIP works'

Features and Benefits

  • Exact replication of any traffic condition (delay, jitter, loss, error, duplication, ...)
  • Multiple traffic patterns (uniform, exponential, burst, random, two-state random, ...)
  • Strict bandwidth control in fr/s or bit/s
  • Filters based on MAC, IP, TCP, UDP, Payload...
  • Wirespeed performance at full duplex rate
  • Accuracy better than < 1μs at FDX Gbit/s

Applications

  • Roll out of IEEE 1588v2 - Packet Time Protocol
  • Check critical data applications
  • Tolerance of services to QoS degradation
  • Assured service and SLA verification
  • Identification of degraded sources
  • Testing IPTV / VoIP / Multiplay developments
  • Stability networking resources
  • Deployment of circuit emulation services (CES) over packet-switched networks

N1 PERFORMANCEOBSESSION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .


Dear Customer:

We are proud to present the latest version of Net.Storm, a WAN emulator that provides most of the features only found in costly rack versions. It provides the latest hardware, FPGA based and is a battery operated handheld device. Net.Storm is the worlds' first field device and, to our knowledge, has no direct comparisons at this time. Please contact us to discuss pricing and to arrange a demonstration.
Kind Regards,


Sales Director

US / Canada: contact Mike
mjs@albedotelecom.com
mob: (647)233-7353
tel: (305)847-9059

Latinoamerica: contact Victor
vkb@albedotelecom.com
tel: +598 93 700 955

Brasil: contact Aderito
afs@albedotelecom.com
tel: +55 11 5051 1578

Europe: contact Julian
jpr@albedotelecom.com
tel: +44 (0) 1865 601957

Germany/Austria/Switzerland: contact Silvan
silvan.imhof@albedotelecom.ch
tel: +41 71 910 03 78

India: contact Prem
prem.sethi@albedo.biz
tel: +91-98110 55459

Asia: contact Yogesh
yme@albedotelecom.com
tel: +91 70651 71111

MEA: contact Tarek
taa@albedotelecom.com
tel: +34 655 449 589

World Local Partners:
sales@albedotelecom.com








N E T . S T O R M
(wan emulator)



N E T . S H A R K
(hand-held tap)
