MultiDSLA Analog measurements

Net.Storm WAN emulator


Voice conformance Lab

(This product is supported until 2025 but it has been discontinued)

ALBEDO Telecom Laboratories emulate common VoIP architectures to execute acceptance, conformance and interconnectivity procedures. Interoperability Labs allow the execution of comprehensive testing in a controlled environment that completely emulates a real network in a rack. We also define comprehensive interconnectivity/acceptance suites to execute test plans that include different networking scenarios.

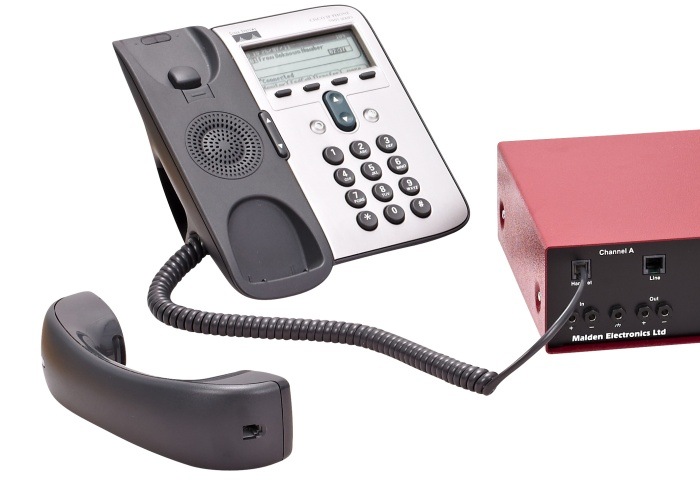

In cooperation with Malden electronics we can deliver reference speech quality measurement systems to the telecommunications community. With carefully designed interfaces to VoIP, mobile, satellite and wireline networks, our products are used to define and confirm performance standards all over the world.

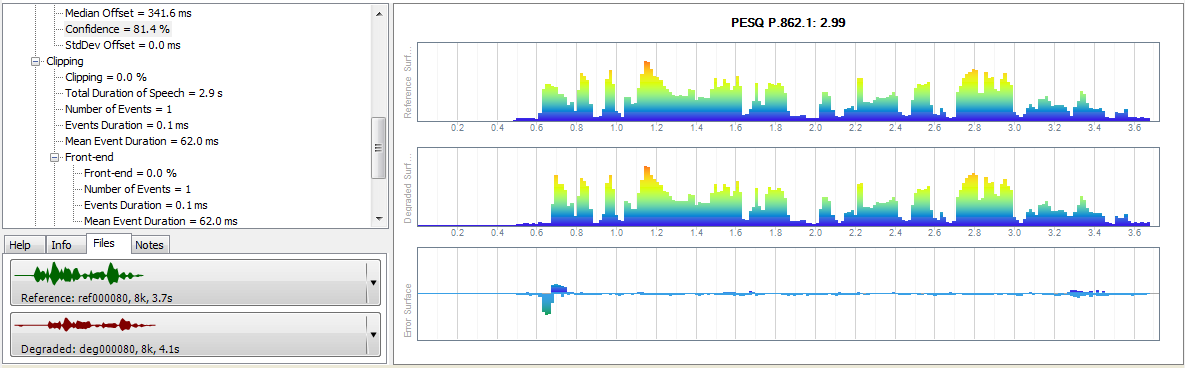

PESQ & POLQA measurements

Testing suites are not necessarily the only way to demonstrate compliance in terms of quality, compatibility or internetworking. However, conformance suites are indeed a cost effective strategy and are most efficient in terms of time and resources. Without a testing suite it is impossible to demonstrate compliance using empirical benchmark procedures, as this would mean no control of traffic conditions, no test tools, no methodology, and no ability to reproduce conditions.

A large number of tests are supported

  • Terminal development
  • SIP phone test bed
  • UMA performance and handover analysis
  • Enterprise SLA validation
  • Echo canceller analysis
  • Train communications
  • DTMF Analysis
  • Audio Analyser
  • Regression testing
  • Conference bridge testing
  • Speech quality optimisation in all networks
  • Speech quality/load evaluation
  • Drive Test
  • Codec evaluation
  • Electro-Acoustic conformance
  • Testing MP3 players
  • Network element development
  • Wireless handset comparison
  • Vendor selection
  • Echo simulation
  • Competitive analysis of cellular networks
  • DSP performance measurement

Standard Test methods included

Analog Measurement

  • Sample Rates 8k, 16k, 32k or 8k, 16k & 48k
  • Linearity 0.1dB for levels -60 to +10dBm
  • Linearity 0.1dB for frequencies 20Hz to 22 kHz
  • Noise floor -85dBm or better
  • Range of measured levels -75dBm to +19dBm
  • Minimum measurable mean active speech level -65dBm
  • Dynamic range of balanced inputs 110dB (2 Channel DSLA only)

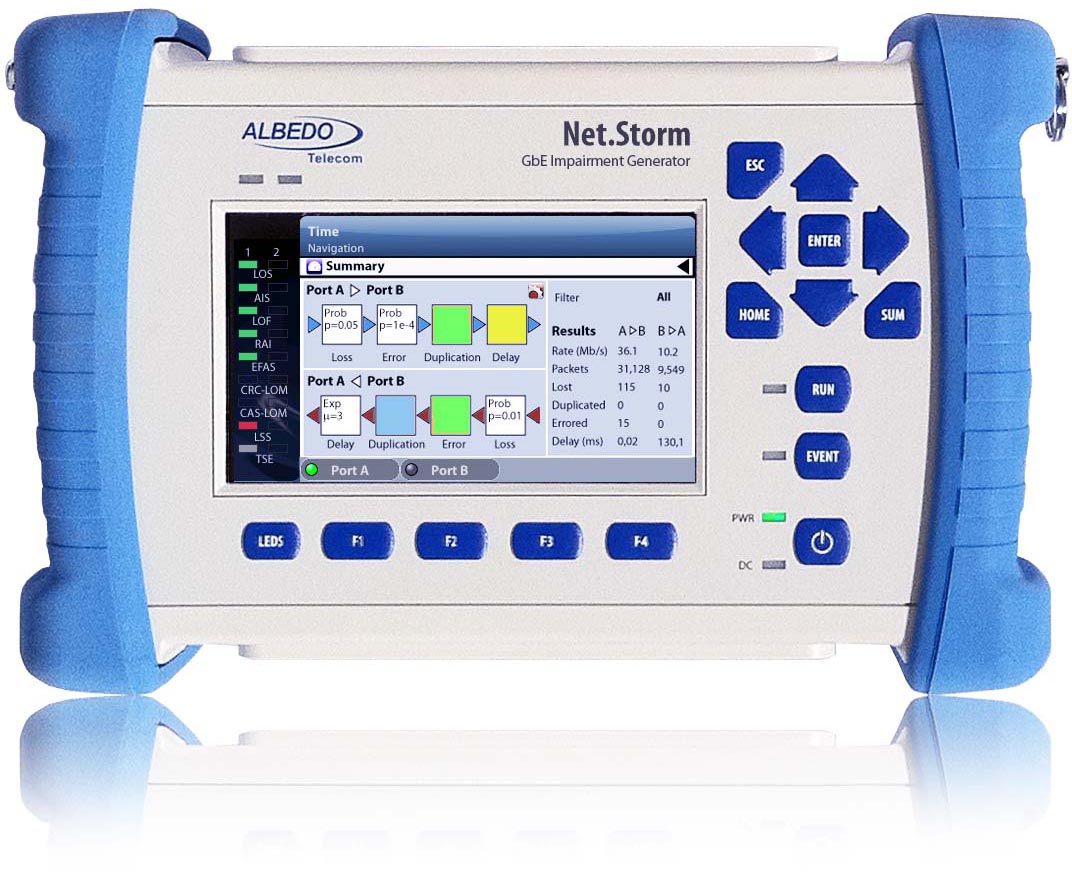

WAN emulation

VoIP laboratory includes Net.Storm a WAN emulator that generates those perturbances typical of IP and Carrier Ethernet to test applications, devices and protocols that should be tolerant with packet delay, jitter, loss, duplication, reordering, error and bandwidth limitations.

Have a look and try this flexible tool, you will love it after discovering how the latest FPGA can overcome previous limitations in accuracy, space or performance. NetStorm enables engineers to model and modify arbitrary performance dynamics including packet delay, jitter, bandwidth limitations, congestion, packet loss, errors and duplication on live IP packets.

Features and Benefits

  • Prevent user rejection
  • Scalable solution
  • Multivendor
  • Low cost / High Performance

Applications

  • Equipment Evaluation
  • Acceptance Tests
  • Approval and Acceptance test
  • Terminal Selection
  • Internetworking
  • Product Conformance
  • IP Trunking
  • Interoperability Tests
  • IMS Interoperability

Users

  • Planning Departments
  • R+D Centers
  • Acceptance Labs
  • Development Engineers
  • VoIP Vendors

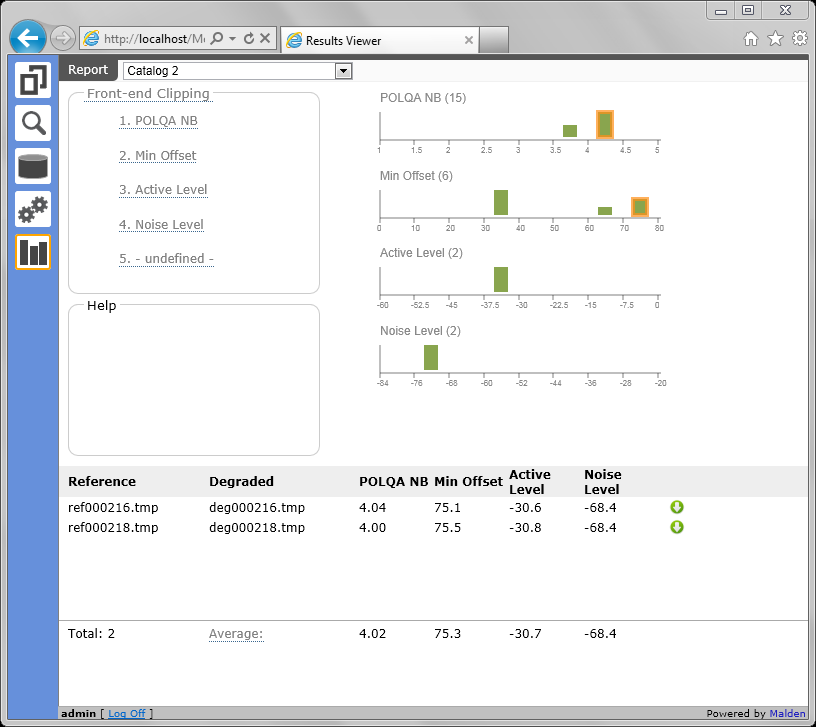

POLQA tresults
