Net.Sync

(This product is supported until 2030 but it has been discontinued)

Net.Sync is a rack mounted PTP appliance (configurable as Master or Slave PTP clock) that is capable to monitor the synchronization quality of the network executing frequency/phase wander measurements in order to track the accuracy of master clock. Net.Sync can also be configured to troubleshoot the transmission layer by means of capacity and quality test suites or simply a reflector to loop back packets to remote appliances.

Assured PTP Timing

• PTP Master/Slave clock modes
• Multiple PTP Profiles: Default (IEEE 1588v2), Freq. Delivery (ITU-T G.8265.1), Power Profile
• Multiple Time References: GNSS, PPS / ToD, OCXO, SyncE, PTP, E1/T1, 10MHz
• Multiple Timing Outputs: PTP , SyncE, E1/T1, 2.0/1.5 MHz, 1 x PPS
• PTP State, Decoding, Counts, Statistics

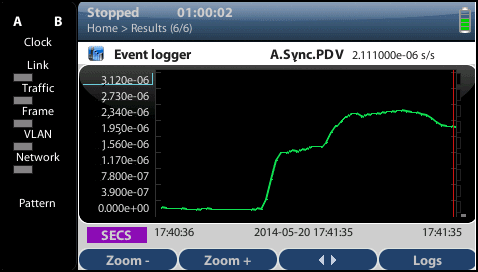

• PTP Sync Floor Delay Population
• PTP Wander Analysis TIE, MTIE, TDEV
• Ethernet Line frequency (MHz), offset (ppm), drift (ppm/s)
• SyncE Wander analysis/generation
• Analysis / Generation ESMC messages and SSM count and rate
• Asymmetric Delay Analysis
• Latency test assisted by GNSS including One-way and Two-way delay measurement
• Packet Analysis, Ethernet/IP Statistics, Bandwidth
• IEEE RFC2544, ITU-T Y.1544 Loop back mode
• L1/L2/L3/L4 loopback

Applications

• Grand Master PTP clock
• GNSS Receiver and PRTC
• Synchronization from input ref. to timing output
• Service activation
• Synchronization roll-out
• Synchronization SLA monitoring and maintenance
• SyncE deployment

Users

• Telecom Operators 3G and LTE
• Power Utilities
• Large factories
• PTP vendors
• R+D centers and synchronization laboratories

CODE	DESCRIPTION
AT.NSYNC	ALBEDO Net.Sync IEEE 1588-2008 Grandmaster / Slave clock emulation. IEEE 1588-2008 protocol monitoring. Dual 10/100/1000 Mb/s RJ-45 electrical ports, dual optical (SFP) ports. PTP message classification and analysis. PDV analysis. PTP TIE, MTIE and TDEV analysis (ITU-T G.8260). Floor delay packet population test (ITU-T G.8260). QoS statistics. RFC 2544 performance test. BER test. Traffic generation. L1-L4 loopback functionality. Traffic statistics. Error analysis. Connectivity test (PING, Trace Route). Analysis filters. Event insertion. Endpoint and pass-through operation modes. Graphical display of events. Report generation and export. Includes internal OCXO timing source. GPS synchronization input. 2048 kHz, 2048 kb/s, 1544 kHz, 10 MHz, 1 pps / time-of-day inputs. 2048 kHz and 1 pps outputs. AC power input, AC power cord, console cable, GPS antenna and cable, rack mount screws.
AT.NSYNC.SE	Synchronous Ethernet clock emulation. ESMC generation and analysis. Synchronous Ethernet clock reference input and output. Frequency offset generation and measurement in Ethernet interface.
AT.NSYNC.SEW	Synchronous Ethernet wander test. Advanced Ethernet frequency (MHz), frequency offset (ppm) and frequency drift (ppm/s) measurement. TIE, MTIE and TDEV measurement. Sinusoidal wander generation function. [REQUIRES: AT.NSYNC.SE]
AT.NSYNC.MSTR	Multistream test. Generation over eight independent traffic streams. Eight analysis filters for each test port.
AT.NSYNC.1564	eSAM (ITU-T Y.1564) Test of up to 8 services simultaneously. Set up of CIR, EIR and policing rate. Per stream quality objectives. Measurement of Information Rate (IR), Frame Transfer Delay (FTD), Frame Delay Variation (FDV), Frame Loss Ratio (FLR) and Availability. [REQUIRES: AT.NSYNC.MSTR]
AT.NSYNC.WIRE	Cable test. Wiremap with open and short circuit detection. Measurement of distance to fault. Crossover / straight cable detection. Measurement of cable skew.
AT.NSYNC.NS	Network Search. Automatic detection of up to 16 most frequent streams listed by Ipv4, VLAN and MAC.
AT.1000Sx.SFP	SFP Adapter. 1.25 Gbps SFP, 850 nm, MMF, 500 m reach, w/ DDM, Duplex LC, 0 - 70ªC
AT.1000Lx.SFP	SFP Adapter. 1.25 Gbps SFP, 1310 nm, SMF, 20 Km reach, w/ DDM, Duplex LC, 0 - 70ªC
AT.1000Zx.SFP	SFP Adapter. 1.25 Gbps SFP, 1550 nm, SMF, 80 Km reach, w/ DDM, Duplex LC, 0 - 70ªC
General options and accessories
AT.NSYNC.DCA	Replaces AC power input by -48 V DC power input in ALBEDO Net.Sync. DC connector included
AT.NSYNC.DC	Adds redundant -48 V DC power input in ALBEDO Net.Sync. DC connector included.
AT.NSYNC.AC	Adds redundant 220 V / 50 to 60 Hz AC power input in ALBEDO Net.Sync. AC power cord included.
Calibration service
AT.NSYNC.CERT	Certificate of calibration. Accuracy calibration certificate, executed only when is sold and before its shipment.
AT.NSYNC.CHECK	Periodic Unit Verification. Includes board test verification (Calibration, Internal Frequency), port verification (Electric Ethernet, SFP, unbalanced , balanced and analog verification: line attenuation, jitter error, pulse mask).
